Drilling tools & Casings

The use of drilling tools for foundation work enables special foundation engineering companies to work efficiently and reliably achieve excellent results, even in the most difficult terrain.

All our drilling tools have been developed from practical experience and optimized for penetrating different types of ground - from loose soils to hard rock. As a result, our drilling tools offer flexible and innovative solutions for a wide range of challenges.

Why Bauer drilling tools?

Bauer drilling tools for special foundation engineering provide a high degree of precision and control over the drilling process. This is particularly important in projects where exact positioning and alignment is required, such as the construction of piles for tall buildings.

Due to their different cutting geometries, our Bauer drilling tools are highly efficient and optimized for the respective requirements of different soil conditions. At Bauer, experience, quality standards and innovation driven by practical experience are seamlessly combined. This provides the necessary competitive advantage to successfully complete construction projects without compromise.

The different types of our Kelly drilling tools

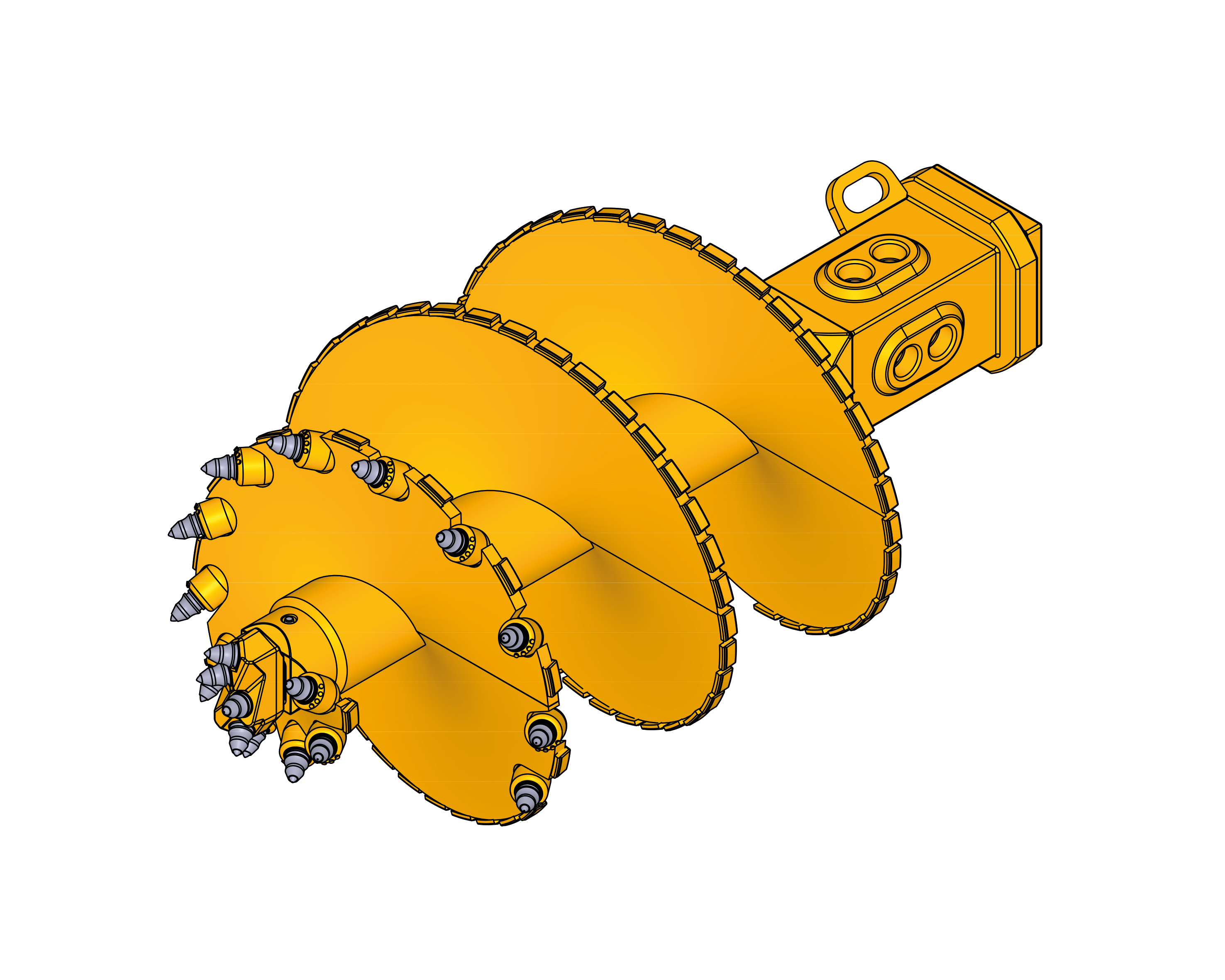

Augers

Bauer augers for soft to rocky soils; for dry drill holes

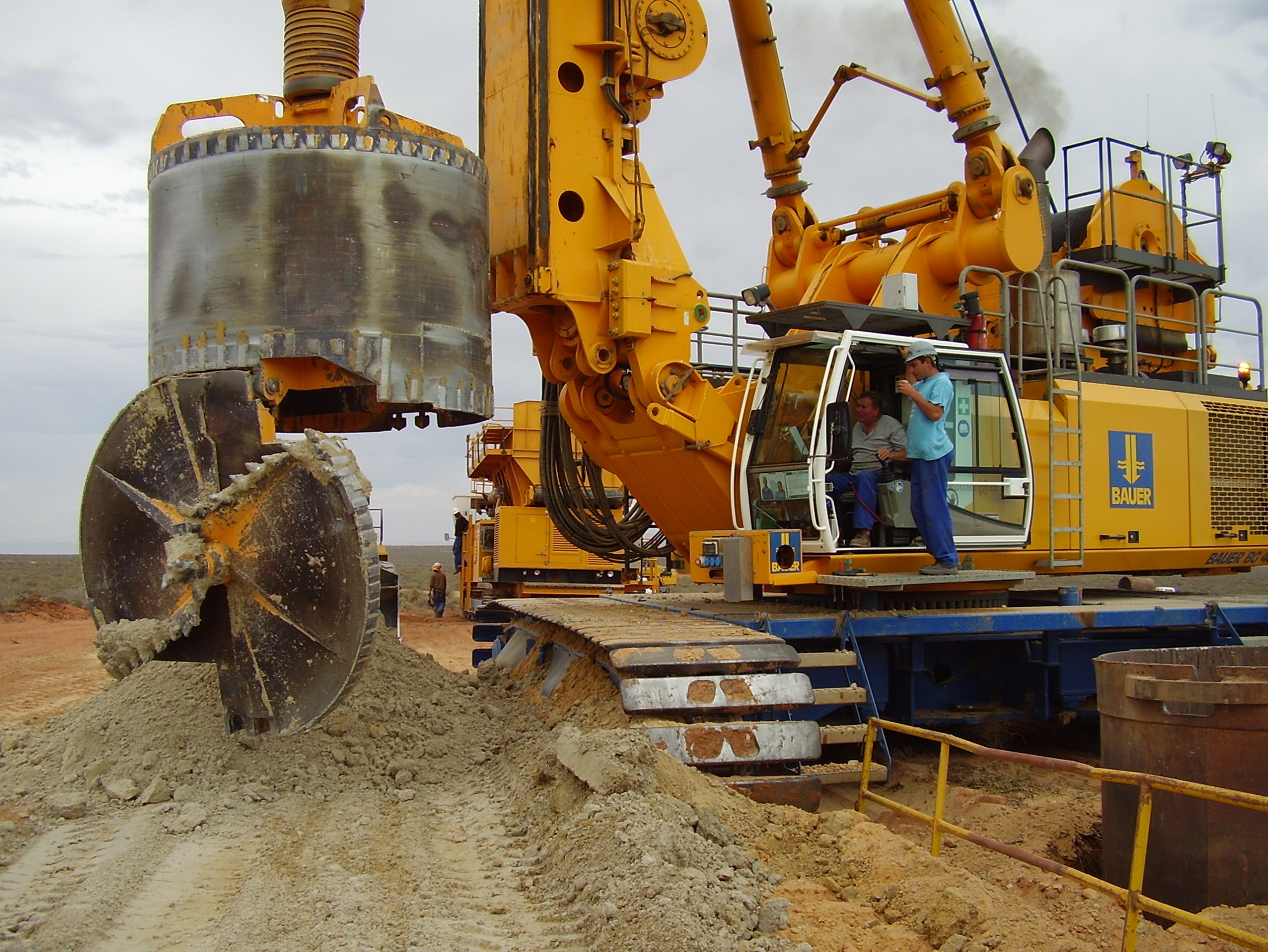

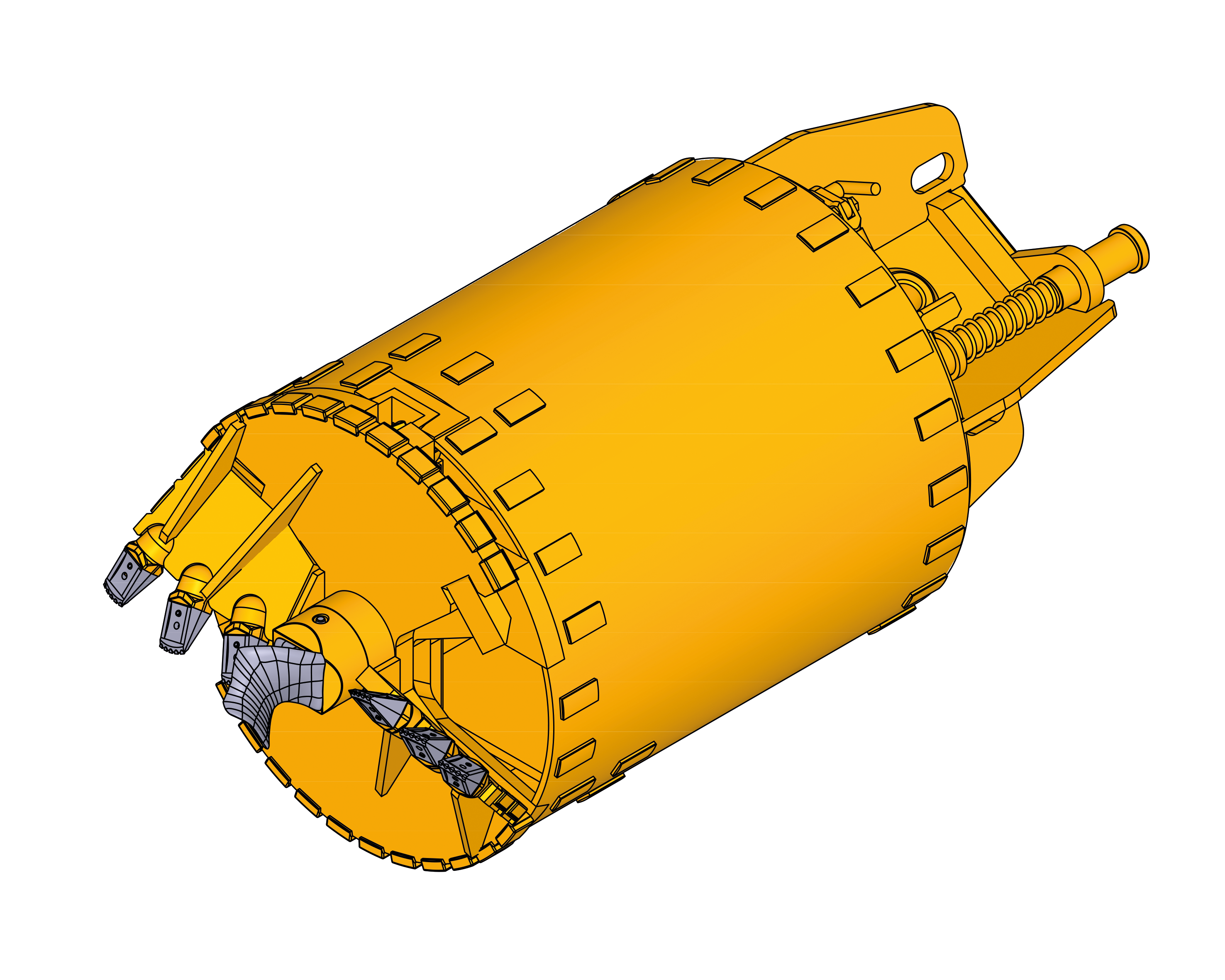

Buckets

Bauer buckets for soft to rocky soils; for drill holes with liquid

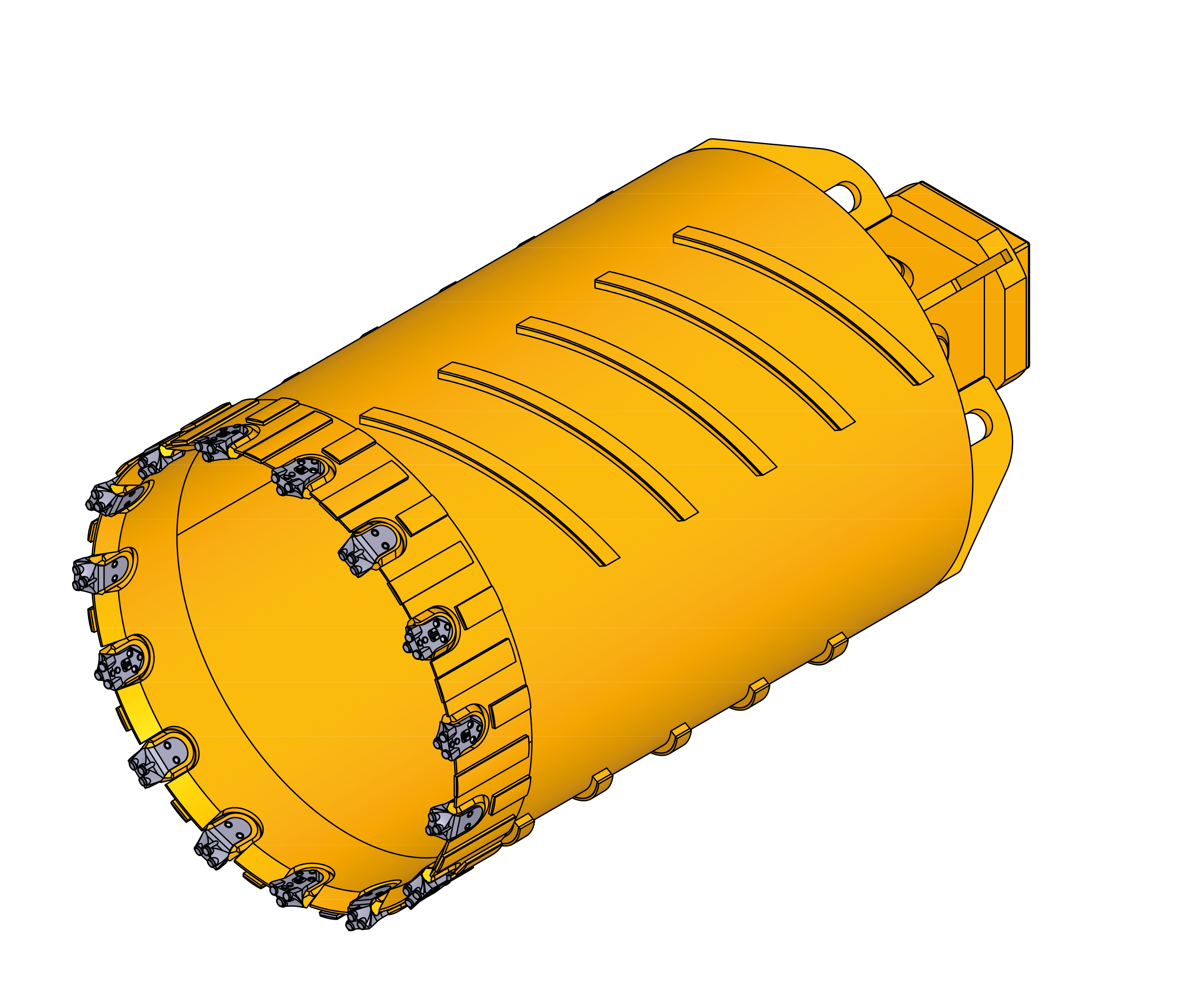

Core barrels

Bauer core barrels for hard to very hard rock, gravel, and reinforced concrete

What are augers suitable for?

Augers are used in special foundation engineering to drill holes quickly and efficiently in suitable ground conditions.

They are characterized by their simple design and handling and are therefore the most cost-effective Kelly drilling tools. The different cutting geometries and tooth sets make them flexible and enable continuous drilling progress. Augers are suitable for drilling in

soft soils (silt and clay)
sandy soils (loose to compact)
gravel (loose to dense)
rock and stones: (harder soils and soft to medium-hard rock)
mixed soils: (soils that have a mixture of the above properties)

What are buckets suitable for?

Buckets are the most effective and safest drilling tools for wet drilling. No loss of material when pulling through the water column. Prevention of hydraulic soil breakage. Easier handling on site due to controlled emptying of the tool. Buckets are suitable for drilling in

soft soils (silt and clay)
sandy soils (loose to compact)
gravel (loose to dense)
rock and stones: (harder soils and soft to medium-hard rock)
mixed soils: (soils that have a mixture of the above properties)

What are core barrels suitable for?

Core barrels ensure precise and efficient drilling work in difficult, hard soil layers. We have developed them to achieve an optimum balance between cost-effectiveness and the hardness of the ground to be worked. Core barrels are suitable for drilling in

hard to very hard rock
gravel
reinforced concrete

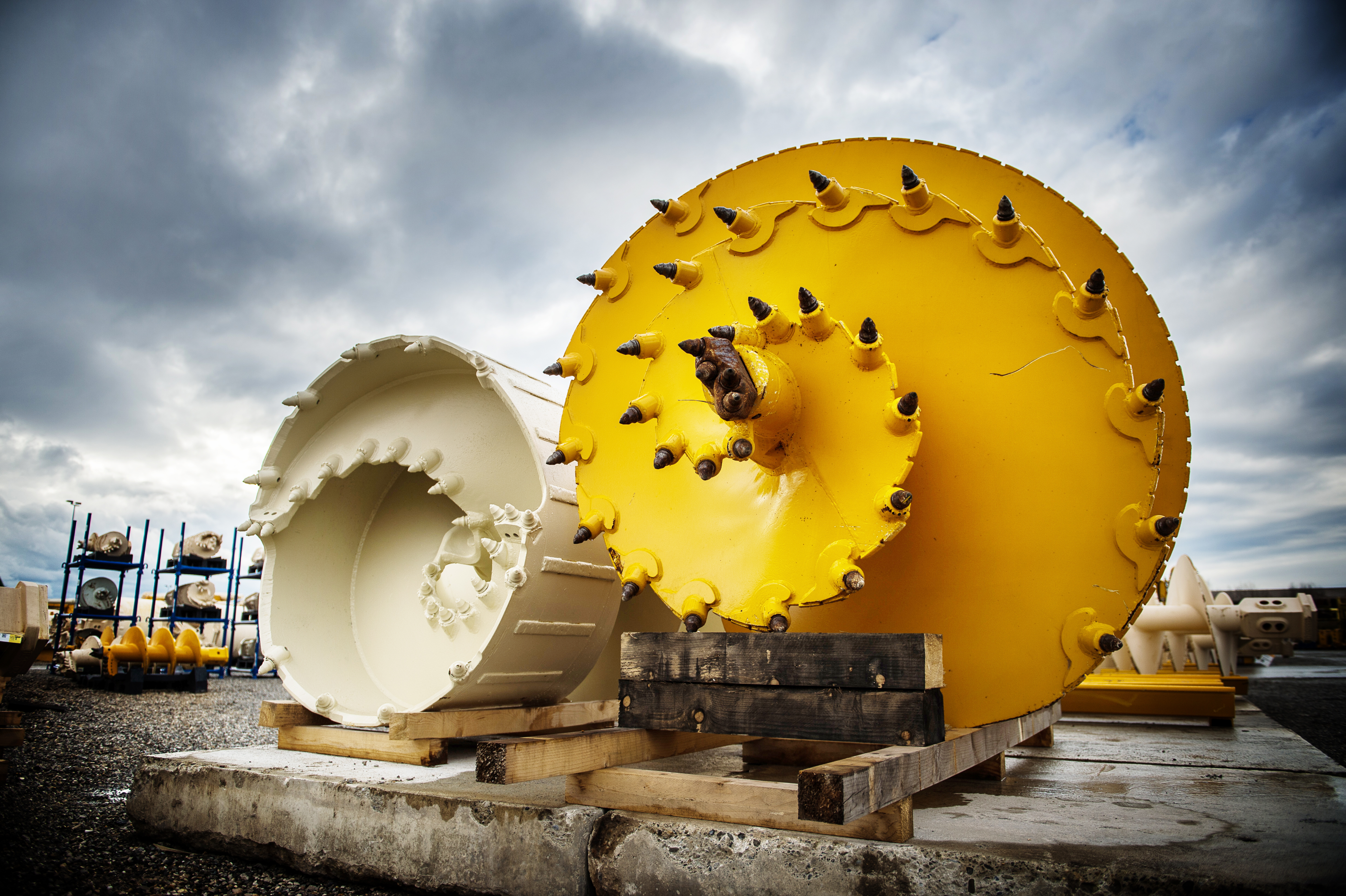

Bauer special drilling tools

Special drilling tools are sometimes required for certain requirements in special foundation engineering that cannot be met with standard drilling tools. This may be the case if particularly large diameters or adaptation to special geological conditions are needed. With our Bauer special drilling tools, you are always ideally equipped. Thanks to our decades of experience and our innovation-driven team of developers, we have the right equipment for every project.

Download

The right drilling tool in just a few clicks

Discover Dritoc and find the right tool for your project!

As the world's first drilling tool configurator, Dritoc recommends the optimal drilling tools for your specific applications in just a few clicks, free of charge and around the clock. Intuitive to use, time-saving, and precise, Dritoc guides you step by step to the optimal drilling tool for your specific requirements.

Discover Dritoc and noticeably increase efficiency and productivity on your construction site. In addition to configuration, Dritoc also allows you to quickly find all installed and alternative wear parts and accessories, making planning and ordering more efficient and transparent.

  • Configure your projects quickly and easily
  • Receive the right drilling tool recommendation 24/7, including all wear parts for each soil layer
  • Visualize your recommendations
